Well Service Rigs
|

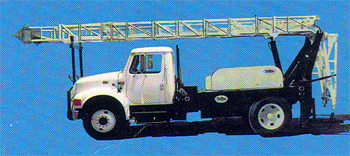

E-1 HEAVY DUTY
|
| Capacity: |
1,000' to 1,500' |
| Width: |
48" |
| Derrick: |
Telescoping or non-
telescoping |
| Sand Reel: |
Flanges 16" OD. Core 5=1/2" OD x 21-1/4" long. Double Brakes 16" x 4" Total Braking Surface 421 sq. in. |
| Spooling Capacities: |
Tubing Drum: 900' of 5/8" line
Sand Reel: 2,500' of 1/2" line
2,000' of 9/16" line |
| Tubing Drum: |
Flanges 16" OD. Core 5-1/2" x 21-1/4" long. Double Brakes 16" x 6" Total Braking Surface 603 sq. in.
|
|
|

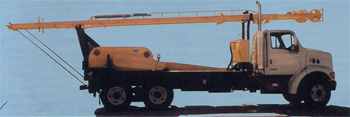

TE-2 HEAVY DUTY
| Capacity: |
2,500' |
| Width: |
6' - 6" |
| Derrick: |
Telescoping or non-
telescoping |
| Sand Reel: |
Fangles, 24" OD. core, 7" OD x 24-3/4" long. Double
brakes, 24" OD x 4" wide. Total braking surface: 602 sq.
in. |
| Spooling Capacities: |
Tubing Drum: 2,637' of 9/16" line
2,137' of 5/8" line
Sand Reel: 3,033' of 9/16" line
2,454' of 5/8" line |
| Tubing Drum: |
Fangles, 24" OD Core, 8-5/8" OD x 25" long. Double
brakes, 24" OD x 4" Wide. Total braking surface: 602 sq.
in. |
|
|

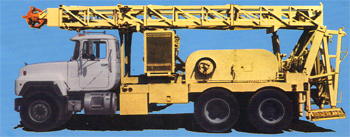

C-30 HEAVY DUTY
| Capacity: |
3,500' |
| Width: |
7' - 4" |
| Derrick: |
Telescoping or non-
telescoping |
| Sand Reel: |
Fangles, 26" OD. Core, 8-5/8" OD x 27" long. Double
brakes, 26" OD x 5" wide. Total braking surface: 7809 sq
in |
| Spooling Capacities: |
Tubing Drum: 3,200' of 5/8" line
2,218' of 3/4" line
1,628' of 7/8" line
Sand Reel: 5,840' of 1/2" line
4,600' of 9/16" line
3,740' of 5/8" line |
| Tubing Drum: |
Fangles, 26" OD. Core, 8-5/8" OD x 31-5/8" long.
Double brakes, 26" OD x 6" wide. Total braking surface:
940 sq in |
|
|

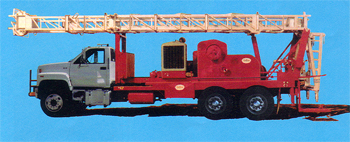

C-60A HEAVY DUTY
|
| Capacity: |
5,000' |
| Width: |
8' |
| Derrick: |
Telescoping or non-
telescoping. Rod and tubing boards optional |
| Sand Reel: |
Double brakes, 27" OD x 6" wide |
| Spooling Capacities: |
Tubing Drum: 2,874' of 3/4" line
2,114' of 7/8" line
Sand Reel: 5,970' of 9/16" line
4,840' of 5/8" line |
| Tubing Drum: |
Double brakes, 27" OD x 8" wide |
| Clutches: |
Air friction. Full floating rums. Positive clutches
to immobilize chains. |
|
|

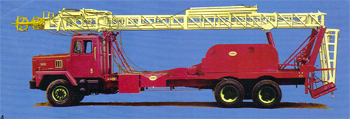

C-65A HEAVY DUTY
| Capacity: |
6,500' |
| Width: |
8' |
| Derrick: |
Telescoping or non-
telescoping. Rod and tubing boards optional. |
| Spooling Capacities: |
Tubing Drum: 3,785' of 3/16" line
2,784' of 7/8" line
Sand Reel: 7,725' of 9/16" line
6,250' of 5/8" line |
| Air Friction Clutches: |
Full floating drums. 31" OD x 8" double brakes on
both drums. Fangles on drums for water cooling |
|
|
F-75A HEAVY DUTY
| Capacity: |
8,500' |
| Width: |
8' |
| Derrick: |
Telescoping, or non-telescoping |
| Sand Reel: |
Fangles 40" OD. Core, 12-3/4" OD x 38-5/8" long.
Double brakes, 39" OD x 7" wide. Total braking surface:
1,712 sq in |
| Spooling Capacities: |
Tubing Drum: 6,530' of 9/16" line
5,275' of 5/8" line
3,660' of 3/4" line
2,690' of 7/8" line
Sand Reel: 11,480' of 9/16" line
9,280' of 5/8" line
6,450' of 3/4" line
4,745' of 7/8" line |
| Tubing Drum: |
Fangles 35" OD. Core, 12-3/4" OD x 30" long. Double
brakes, 34" OD x 9" wide. Total braking surface: 1,712
sq in |
|
|

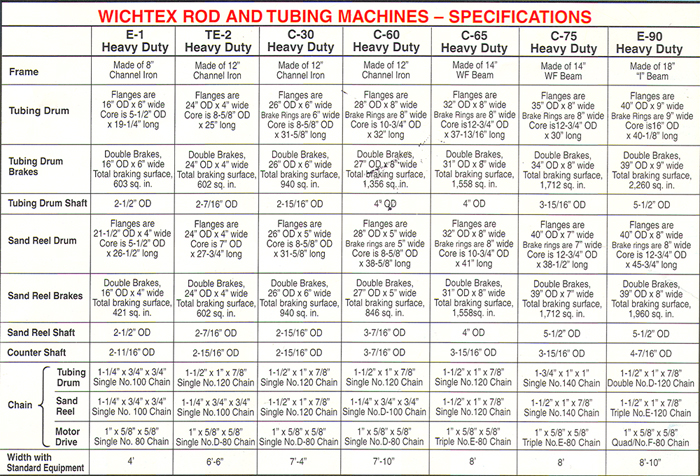

SPECIFICATIONS
 |
|
|
|
|
|
|
|
|
|
