E-1 HEAVY DUTY
Capacity: 1,000' to 1,500'
Width: 48"
Derrick: Telescoping or non-telescoping
Sand Reel: Flanges 16" OD. Core 5=1/2" OD x 21-1/4" long. Double Brakes 16" x 4" Total Braking Surface 421 sq. in.
Spooling Capacities: Tubing Drum: 900' of 5/8" line
Sand Reel: 2,500' of 1/2" line2,000' of 9/16" line
Tubing Drum: Flanges 16" OD. Core 5-1/2" x 21-1/4" long. Double Brakes 16" x 6" Total Braking Surface 603 sq. in.

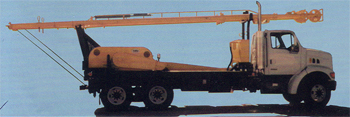

TE-2 HEAVY DUTY
Capacity: 2,500'
Width: 6' - 6"
Derrick: Telescoping or non-telescopingSand Reel: Fangles, 24" OD. core, 7" OD x 24-3/4" long. Double brakes, 24" OD x 4" wide. Total braking surface: 602 sq. in.
Spooling Capacities: Tubing Drum: 2,637' of 9/16" line2,137' of 5/8" line
Sand Reel: 3,033' of 9/16" line2,454' of 5/8" line
Tubing Drum: Fangles, 24" OD Core, 8-5/8" OD x 25" long. Double brakes, 24" OD x 4" Wide. Total braking surface: 602 sq. in.
C-30 HEAVY DUTY
Capacity: 3,500'
Width: 7' - 4"
Derrick: Telescoping or non-telescoping
Sand Reel: Fangles, 26" OD. Core, 8-5/8" OD x 27" long. Double brakes, 26" OD x 5" wide. Total braking surface: 7809 sq in
Spooling Capacities: Tubing Drum: 3,200' of 5/8" line2,218' of 3/4" line1,628' of 7/8" line
Sand Reel: 5,840' of 1/2" line4,600' of 9/16" line3,740' of 5/8" line
Tubing Drum: Fangles, 26" OD. Core, 8-5/8" OD x 31-5/8" long. Double brakes, 26" OD x 6" wide. Total braking surface: 940 sq in
C-60A HEAVY DUTY
Capacity: 5,000'
Width: 8'
Derrick: Telescoping or non-telescoping. Rod and tubing boards optional
Sand Reel: Double brakes, 27" OD x 6" wide
Spooling Capacities: Tubing Drum: 2,874' of 3/4" line2,114' of 7/8" line
Sand Reel: 5,970' of 9/16" line4,840' of 5/8" line
Tubing Drum: Double brakes, 27" OD x 8" wide
Clutches: Air friction. Full floating rums. Positive clutches to immobilize chains.
C-65A HEAVY DUTY
Capacity: 6,500'
Width: 8'
Derrick: Telescoping or non-telescoping. Rod and tubing boards optional.
Spooling Capacities: Tubing Drum: 3,785' of 3/16" line2,784' of 7/8" line
Sand Reel: 7,725' of 9/16" line 6,250' of 5/8" line
Air FrictionClutches: Full floating drums. 31" OD x 8" double brakes on both drums. Fangles on drums for water cooling
F-75A HEAVY DUTY
Capacity: 8,500'
Width: 8'
Derrick: Telescoping, or non-telescoping
Sand Reel: Fangles 40" OD. Core, 12-3/4" OD x 38-5/8" long. Double brakes, 39" OD x 7" wide. Total braking surface: 1,712 sq in
Spooling Capacities: Tubing Drum: 6,530' of 9/16" line5,275' of 5/8" line3,660' of 3/4" line2,690' of 7/8" line
Sand Reel: 11,480' of 9/16" line9,280' of 5/8" line6,450' of 3/4" line4,745' of 7/8" line
Tubing Drum: Fangles 35" OD. Core, 12-3/4" OD x 30" long. Double brakes, 34" OD x 9" wide. Total braking surface: 1,712 sq in
SPECIFICATIONS
